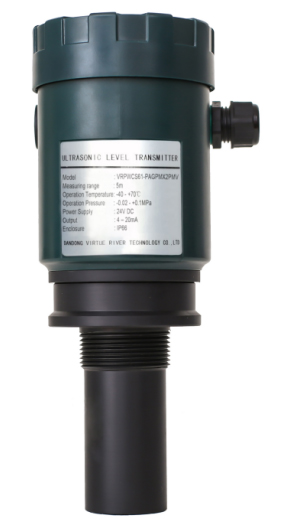

VRPWCS61 Ultrasonic Level Transmitter
Features: Multiple functions, good reliability, economic,
plastic housing, equipped with a built-buttons programmer and a display, with which simple setting and calibration can be done
Application: For liquids level measurement in industrial fields, especially for water treatment industry. For example, rivers, lakes, reservoirs remote monitoring telemetric systems，monitoring and flood response support systems, irrigation water conservation remote management systems, etc
Measuring range: Standard probe: liquid 0.3~5m
Anti-corrosive sealed probe: 0.3~4m
Process connection: G1 1/2A or flanges
Housing material of the transducer: PA66+GF30 or PVDF
Process temperature: -40 ~ +70℃
Process pressure: -0.02 ~ +0.1MPa
Accuracy: ±0.4% of full range
Display: Be equipped with a programmer and a display, by which
main parameters can be reset on site. Display can respectively
show the echo curve, measured values, etc
Signal output: 4 ~ 20mA
Power supply: 24V DC (2-wire or 4-wire); 220V AC (4-wire)
Enclosure grade: IP66
