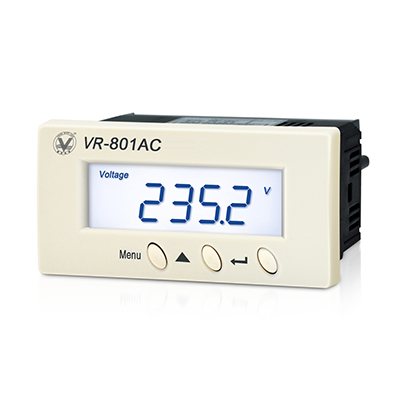

VR-801AC
Standard features
The measurement of single-phase voltage, current, active power, reactive power, apparent power, power factor;
Standard CT, PT or direct voltage input;
Electric energy measurement:Active electric energy (kWh), reactive electric energy (kvarh);
APS of the instrument :AC220V±20%;
All instrument parameters can be set through display screen;
Optional features
LED display module (DS) LCD display module (DSC)
Wide range AC power supply:AC220V±20% (AC220V)
1-channel RS-485 communication interface, Modbus-RTU communication protocol (C)
2-channel remote digital signal input (R)
2-channel remote relay control output (Q)
1-channel programmable analog output 4mA~20mA (A)
Remote control output cannot be selected with analog output at the same time
Overall Dimensions:
