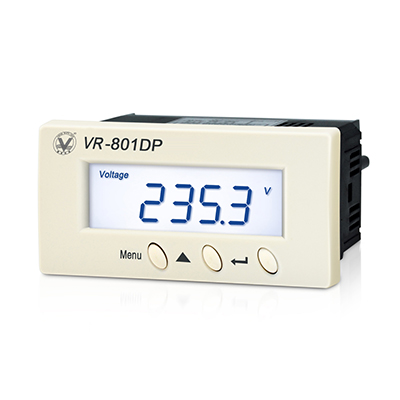

Single-phase Intelligent Power Monitor
VR-801DP
Standard features
The measurement of single-phase voltage, current, active power, reactive power;
Standard CT, PT or direct voltage input;
Electric energy measurement:Active electric energy (kWh), reactive electric energy (kvarh);
APS of the instrument :AC220V±20%;
All instrument parameters can be set through display screen;
Optional features
LED display module (DS) LCD display module (DSC)
Wide range AC/DC power supply: AC/DC110V ～ 250V (DC200V)
1-channel RS-485 communication interface, Modbus-RTU communication protocol (C)
1-channel programmable analog output 4mA~20mA (A)

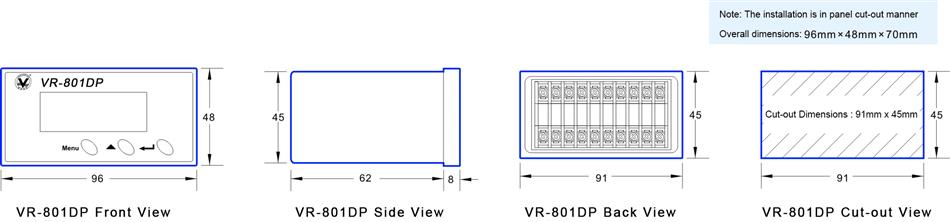

Overall Dimensions:
