Pressure Sensor

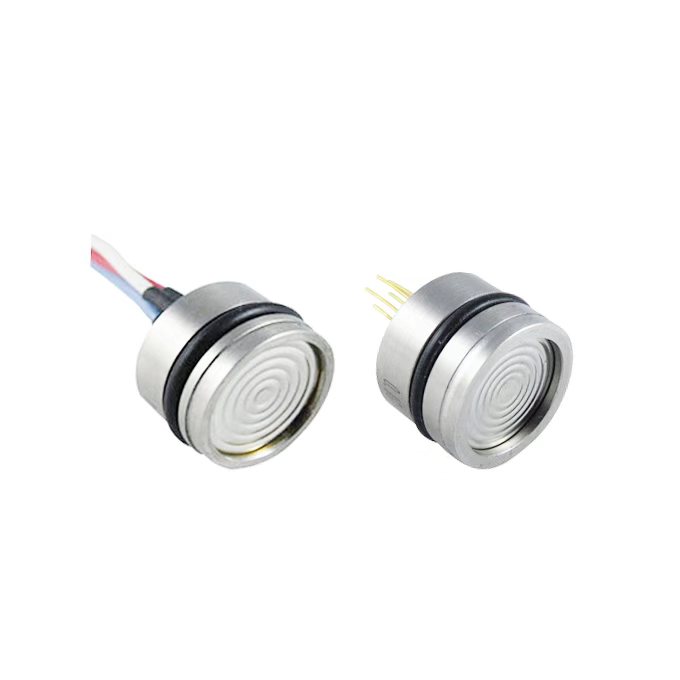

VR16 Piezoresistive Silicon Pressure Sensor(Φ15.8*11mm)
Pressure Ref: Gauge pressure, absolute pressure, sealed gauge pressure
Ranges: -100KPa - 0 - 0.1MPa.......25MPa
Input impedance: 2KΩ - 5KΩ
Zero output: ±2mV
Span output: ≥60mV
Excitation: 1.5mA
Operating temp: -40℃ - +125℃
Compensated temp: -10℃ - +70℃
Housing and diaphragm: 316L
Filling oil: silicon oil
Accuracy: ±0.25%FS
