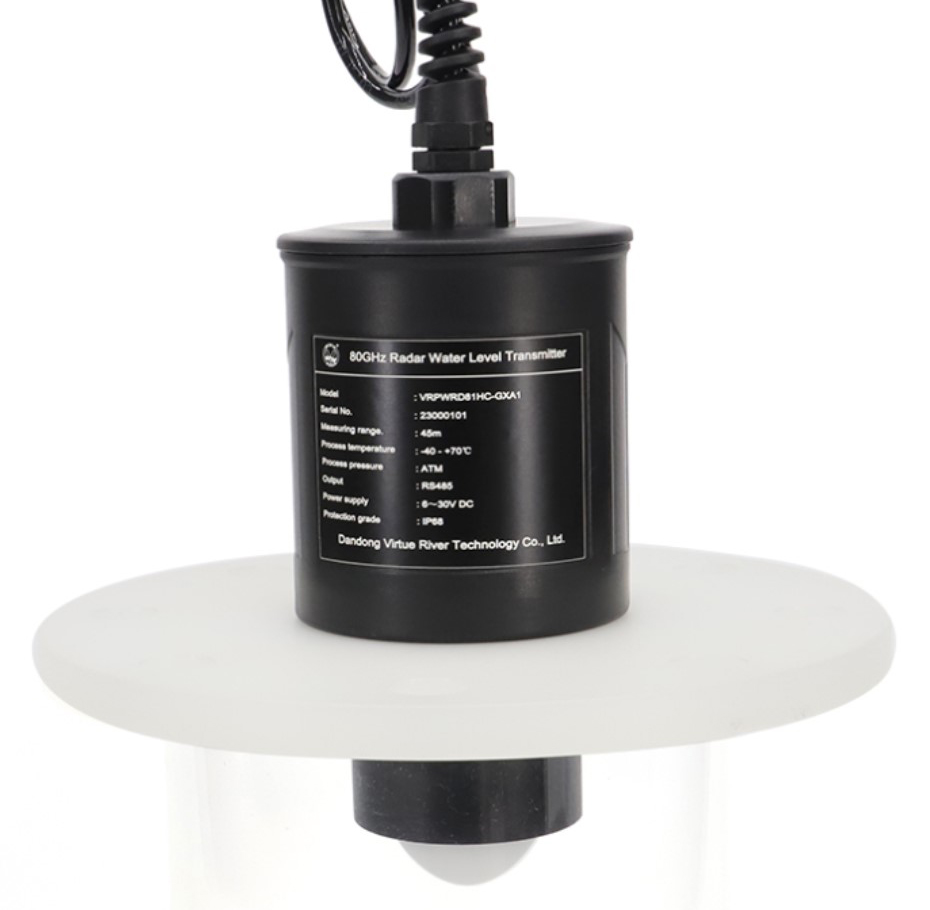

VRPWRD81HC Non-contact Intelligent 80GHz Water Radar Level Transmitter
Model: VRPWRD81HC
Features:
Stable performance, low power consumption, small beam angle, high precision, strong anti-interference capability, with angle measuring function, small and light, easy installation, can be used for serial port debugging
Application:
It is suitable for monitoring the level of the accumulated water on the roads in the low-lying areas or under bridges in a city; monitoring the water level in reservoirs, rivers, hydropower stations, monitoring water level in geological disaster and mudslides warning systems, and monitoring the water level in irrigation canals.
Specifications:
Measuring range: 45m/85m
Beam angle: 6°
Accuracy: ±1mm
Process connection: M66*2 thread / flange / bracket
Working temperature: -40℃- +70℃
Housing material: ABS
Frequency: 80GHz
Power supply: 6 - 30V DC
Output: RS485 / Modbus
Blueteeth setting: Optional
Enclosure protection grade: IP68
